Master Mover GTMT200

Product Feature :

Category : Small Range
Model : GTMT200
Performance : Moves loads up to 2,000 kg


Prominent point :

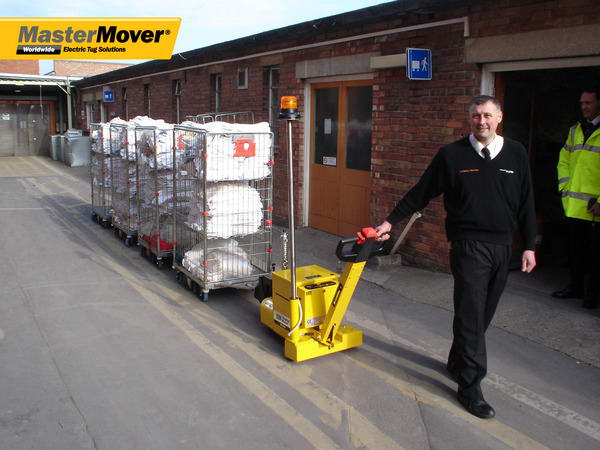

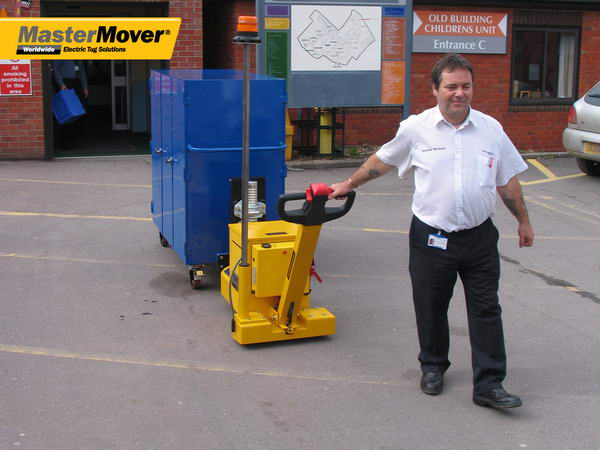

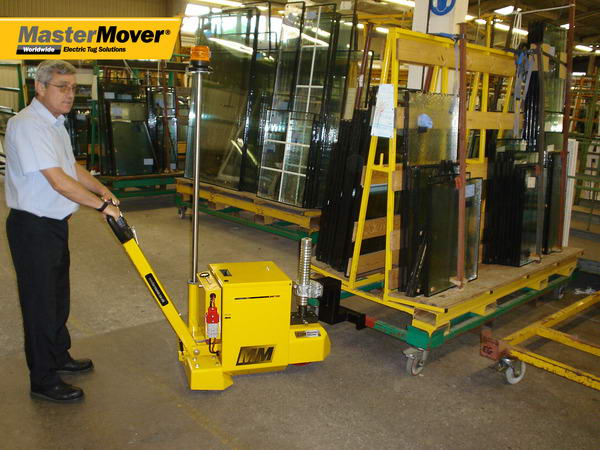

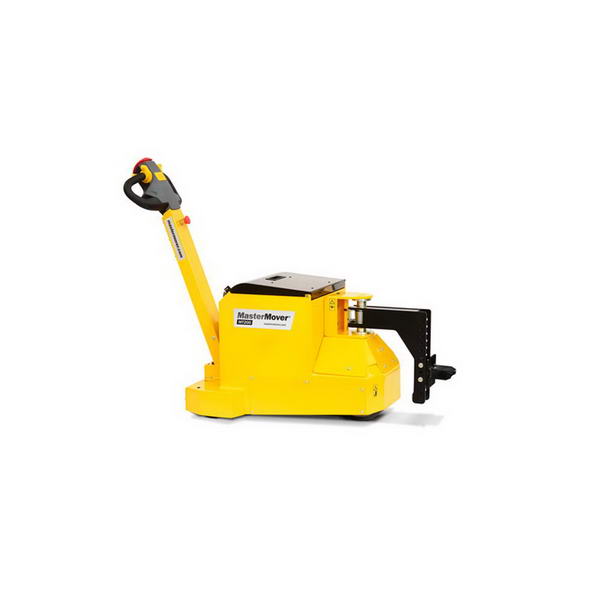

The MT200 is the first and smallest electric tug in the MasterTug range. It is designed to push, pull and steer wheeled loads weighing up to 2,000 kg. Internal weight packs provide the traction, the dual secured mast gives the machine a robustness and the AC drive motor ensures maximum power even at low speed. An automatic tiller cut off maximises operator safety and the option of an interchangeable battery ensures the machine is available for use 24 hours a day.


Benefits of Model :

  • Battery monitoring system
  • Dual secured mast
  • Zinc coated steel couplings
  • AC drive motor
  • Automatic tiller cut off
  • Internal weight packs



Specification:

Technical Data

Identification

Product code MT200
Recommended load weight - Castors 2,000 kg
Recommended load weight - Rails 8,000 kg
Machine weight including battery 214 kg
Drive type Electric AC
Parking brake Electromagnetic
Drive wheel type Polyurethane
Drive motor power 1.2 kW
Controller type AC
Variable machine speed 0.1 km/h - 5 km/h

Battery options

Battery pack - sealed - 46Ah 24V - fixed
Battery pack - sealed - 46Ah 24V - interchangeable

Charging options

Charger - internal - 12.5A 24V - 110V-240V
Charger - external - 12.5A 24V - 110V-240V

Mast options

Mast - fixed

Additional equipment

Option - flashing safety light and motion bleeper
Option - two speed selector switch

Male coupling options

Coupling - male - height adjustable box

Female coupling options

Coupling - female - box

Drawing:

Mt200   web dimensions
