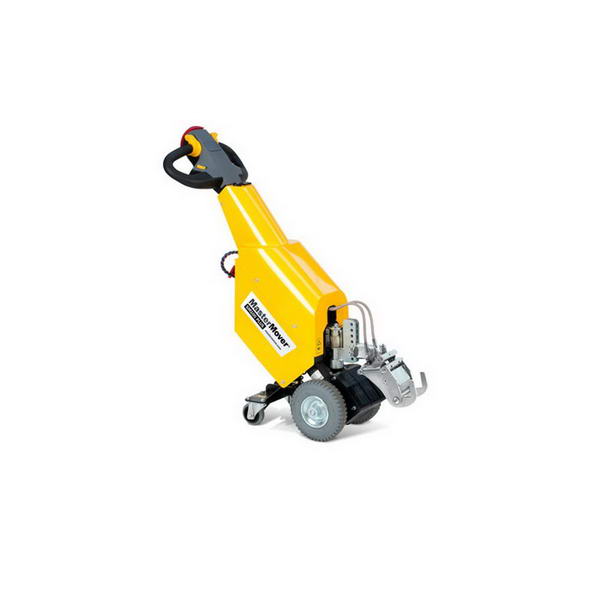

Master Mover GTSM100+

Product Feature :

Category : Small Range
Model : GTSM100+
Performance : Moves loads up to 1,200 kg


Prominent point :

The SM100+ is the only SmartMover in the range to feature a hydraulic coupling point. A press of a button is all that is needed to engage the hydraulics, creating an unbreakable connection to the load. This, combined with the leveraged weight transfer system and 2 powerful drive motors makes it suitable for moving 1,200 kg loads, even on slopes. Other standard features include a battery monitoring system that tells you when a quick battery change is required.


Benefits of Model :

  • Battery monitoring system
  • FEA tested steel chassis
  • All steel covers
  • 2 Drive motors
  • Hydraulic coupling point
  • Leveraged weight transfer



Specification:

Technical Data

Identification

Product code SM100+
Recommended load weight - Castors 1,200 kg
Recommended load weight - Rails 4,800 kg
Machine weight including battery 80 kg
Drive type Electric DC
Parking brake Electromagnetic
Drive wheel type Puncture-proof, non-marking
Drive motor power 2 x 0.22 kW
Controller type 110 DC Permanent
Variable machine speed 0.1 km/h - 5 km/h

Battery options

Battery pack - sealed - 22Ah 24V - interchangeable

Charging options

Charger - external - 5A 24V - 85V-265V

Additional equipment

Option - forward facing LED
Option - roll cage pivot link bar - universal
Option - XrissXcross roll cage connection straps
Option - flashing safety light and motion bleeper

Male coupling options

Coupling - hydraulic - 50mm x 25mm (A frame)
Coupling - hydraulic - A frame and sunlight
Coupling - hydraulic - multi size

Female coupling options

Coupling - adaptor - 50mm x 25mm - straight
Coupling - adaptor - 50mm x 25mm - angled
Coupling - adaptor - waste bin A frame

Drawing:

Sm100  %28web%29 rev1



Value Added Service
  • Professional, responsive and experienced service team
  • Free preventive maintenance program for the first year
  • Training seminars for operators to enhance product safety and efficiency
  • Over 2000 varieties of spare parts in availabe stock
  • Assistance in reducing maintenance costs while enhancing productivity
